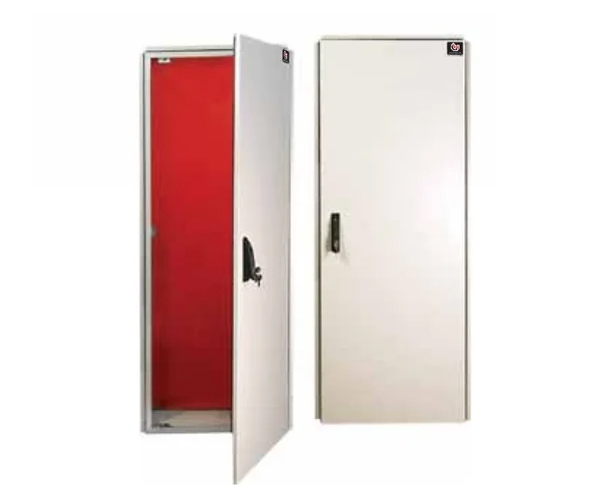

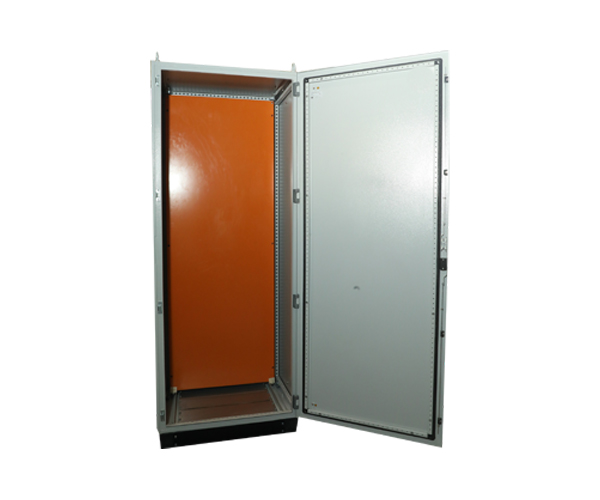

TCE Series Floor standing Enclosures are Rigid and highly flexible modular enclosure series for versatile application. Ideally suited for Industrial automation / Drives / Power transmission and distribution / Special purpose machines.
TCE Series offers IP66-IK10 protection for single door enclosure and IP65-IK10 protection for double door enclosure.
Robust profile with 25mm hole pattern and joined together with uniform diagonal accuracy. Door and covers protect dust and water by highly resilient foamed PU gasket. The Mounting plate with high load bearing capacity is depth adjustable with sliding provision.
Specification:
- Range( W x H x D) mm: 600W x1800H x 400D to 1200 x 2200 x800
- Available in IP 65 /66 degree of protection
- Different version available such as front door/rear cover with or without mounting plates
- 3 mm Sliding mounting plate as a standard . RAL-2000 color shade as standard
- Powder coated ( RAL-7035) followed by PU gasket
- 4 point lock as standard
- Separate locking at LHS door with swing handle for double door
- Customized solution to meet special requirement
